Product overview

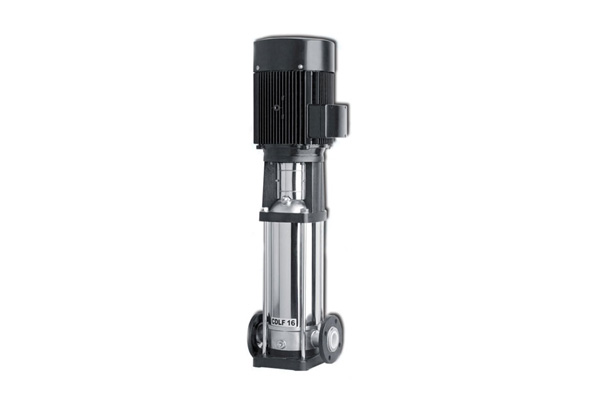

GDL type vertical multistage pipeline centrifugal pump is a new generation product designed and manufactured by our company on the basis of better pump types abroad, combined with the user's requirements and fire related standards, and according to JB / tq6435-92 standard.
The suction and discharge ports of the water pump are in the same straight line. The rotor component is composed of shaft, impeller, impeller baffle sleeve, shaft sleeve and other parts. The water inlet section, middle section and outlet section are connected with tension bolts. The shaft seal adopts mechanical seal, lubricated and cooled by pressure water from balance chamber. It is the best pump type for conveying cold and hot water or similar physical and chemical properties to water and other liquids in various industries.
The company has strong technical force, rich production experience and perfect detection means, so as to ensure the stability and reliability of product quality
working principle
When the motor drives the impeller on the shaft to rotate at a high speed, the liquid filled in the impeller is thrown from the center of the impeller along the flow passage between the blades to the periphery of the impeller under the action of centrifugal force. Due to the action of the blade, the pressure and speed of the liquid increase at the same time. After passing through the channel of the guide shell, it is directed to the secondary impeller. In this way, it flows through all impellers and guide shells step by step Increase the pressure energy of the liquid. After adding each impeller step by step, a certain head can be obtained.
GDL vertical multistage pipeline pump is a new pump type in 1990s. It has the advantages of energy saving, small floor area, convenient installation, stable performance, high quality stainless steel 1Cr18Ni9Ti for outer casing and wear-resistant mechanical seal for shaft seal, with no leakage and long service life. The axial force is solved by hydraulic balance, so the pump runs stably and has low noise. The installation condition is better than DL pump. It can be easily installed in the middle of any horizontal pipeline. It has high hydraulic efficiency, wide performance range, inlet and outlet diameter of 25-100 mm, flow rate of 2-72 tons per hour, lift of 25-150 meters, a total of 9 series and more than 70 specifications, which can fully meet the needs of water supply and drainage and fire-fighting facilities in high-rise buildings, deep mines, etc. it is a better pump type for conveying cold and hot water or general medium, physical and chemical properties similar to water and other liquids in major industries.
model | series | flow | lift | speed | Motor power | efficiency | NPSH required | weight |
m3/h | M | r/min | kw | % | NPSH | KG | ||
25GDL2-12 | 3 | 2 | 36 | 2900 | 1.1 | 30 | 2.9 | 58 |
25GDL2-12 | 4 | 2 | 48 | 2900 | 1.1 | 30 | 2.9 | 62 |
25GDL2-12 | 5 | 2 | 60 | 2900 | 2 | 30 | 2.9 | 68 |
25GDL2-12 | 6 | 2 | 72 | 2900 | 2 | 30 | 2.9 | 72 |
25GDL2-12 | 7 | 2 | 84 | 2900 | 2 | 30 | 2.9 | 78 |
25GDL2-12 | 8 | 2 | 96 | 2900 | 2.2 | 30 | 2.9 | 82 |
25GDL2-12 | 9 | 2 | 108 | 2900 | 2 | 30 | 2.9 | 86 |
25GDL2-12 | 10 | 2 | 120 | 2900 | 3 | 30 | 2.9 | 98 |
25GDL2-12 | 11 | 2 | 132 | 2900 | 3 | 30 | 2.9 | 102 |
25GDL2-12 | 12 | 2 | 144 | 2900 | 3 | 30 | 2.9 | 102 |
25GDL2-12 | 13 | 2 | 156 | 2900 | 4 | 30 | 2.9 | 110 |
25GDL2-12 | 14 | 2 | 168 | 2900 | 4 | 30 | 2.9 | 110 |
25GDL2-12 | 15 | 2 | 180 | 2900 | 4 | 30 | 2.9 | 110 |
model | series | flow | lift | speed | Motor power | efficiency | NPSH required | weight |
m3/h | M | r/min | kw | % | NPSH | KG | ||
25GDL4-11 | 3 | 4 | 33 | 2900 | 1.1 | 42 | 2.9 | 58 |
25GDL4-11 | 4 | 4 | 44 | 2900 | 1.5 | 42 | 2.9 | 65 |
25GDL4-11 | 5 | 4 | 55 | 2900 | 2.2 | 42 | 2.9 | 72 |
25GDL4-11 | 6 | 4 | 66 | 2900 | 2.2 | 42 | 2.9 | 76 |
25GDL4-11 | 7 | 4 | 77 | 2900 | 3 | 42 | 2.9 | 86 |
25GDL4-11 | 8 | 4 | 88 | 2900 | 3 | 42 | 2.9 | 90 |
25GDL4-11 | 9 | 4 | 99 | 2900 | 3 | 42 | 2.9 | 94 |
25GDL4-11 | 10 | 4 | 110 | 2900 | 4 | 42 | 2.9 | 110 |
25GDL4-11 | 11 | 4 | 121 | 2900 | 4 | 42 | 2.9 | 114 |
25GDL4-11 | 12 | 4 | 132 | 2900 | 4 | 42 | 2.9 | |
25GDL4-11 | 13 | 4 | 143 | 2900 | 4 | 42 | 2.9 | |
25GDL4-11 | 14 | 4 | 154 | 2900 | 5.5 | 42 | 2.9 | |
25GDL4-11 | 15 | 4 | 165 | 2900 | 5.5 | 42 | 2.9 | |
model | series | flow | lift | speed | Motor power | efficiency | NPSH required | weight |
m3/h | M | r/min | kw | % | NPSH | KG | ||
40GDL6-12 | 3 | 6 | 36 | 2900 | 1.5 | 52 | 2.9 | 72 |
40GDL6-12 | 4 | 6 | 48 | 2900 | 2.2 | 52 | 2.9 | 78 |
40GDL6-12 | 5 | 6 | 60 | 2900 | 2.2 | 52 | 2.9 | 82 |
40GDL6-12 | 6 | 6 | 72 | 2900 | 3 | 52 | 2.9 | 92 |
40GDL6-12 | 7 | 6 | 84 | 2900 | 3 | 52 | 2.9 | 96 |
40GDL6-12 | 8 | 6 | 96 | 2900 | 4 | 52 | 2.9 | 112 |
40GDL6-12 | 9 | 6 | 108 | 2900 | 4 | 52 | 2.9 | 116 |
40GDL6-12 | 10 | 6 | 120 | 2900 | 4 | 52 | 2.9 | 120 |
40GDL6-12 | 11 | 6 | 132 | 2900 | 5.5 | 52 | 2.9 | 140 |
40GDL6-12 | 12 | 6 | 144 | 2900 | 5.5 | 52 | 2.9 | |
40GDL6-12 | 13 | 6 | 156 | 2900 | 7.5 | 52 | 2.9 | |
40GDL6-12 | 14 | 6 | 168 | 2900 | 7.5 | 52 | 2.9 | |
40GDL6-12 | 15 | 6 | 180 | 2900 | 7.5 | 52 | 2.9 | |
model | series | flow | lift | speed | Motor power | efficiency | NPSH required | weight |
m3/h | M | r/min | kw | % | NPSH | KG | ||
50GDL12-15 | 2 | 12 | 30 | 2900 | 2.2 | 57 | 3.5 | 113 |
50GDL12-15 | 3 | 12 | 45 | 2900 | 3 | 57 | 3.5 | 129 |
50GDL12-15 | 4 | 12 | 60 | 2900 | 4 | 57 | 3.5 | 149 |
50GDL12-15 | 5 | 12 | 75 | 2900 | 5.5 | 57 | 3.5 | 181 |
50GDL12-15 | 6 | 12 | 90 | 2900 | 5.5 | 57 | 3.5 | 190 |
50GDL12-15 | 7 | 12 | 105 | 2900 | 7.5 | 57 | 3.5 | 204 |
50GDL12-15 | 8 | 12 | 120 | 2900 | 7.5 | 57 | 3.5 | 212 |
50GDL12-15 | 9 | 12 | 135 | 2900 | 11 | 57 | 3.5 | 265 |
50GDL12-15 | 10 | 12 | 150 | 2900 | 11 | 57 | 3.5 | 273 |
model | series | flow | lift | speed | Motor power | efficiency | NPSH required | weight |
m3/h | M | r/min | kw | % | NPSH | KG | ||
50GDL12-25 | 1 | 12 | 25 | 2900 | 2.2 | 57 | 3.5 | 105 |
50GDL12-25 | 2 | 12 | 50 | 2900 | 4 | 57 | 3.5 | 119 |
50GDL12-25 | 3 | 12 | 75 | 2900 | 5.5 | 57 | 3.5 | 138 |
50GDL12-25 | 4 | 12 | 100 | 2900 | 7.5 | 57 | 3.5 | 157 |
50GDL12-25 | 5 | 12 | 125 | 2900 | 11 | 57 | 3.5 | 184 |
50GDL12-25 | 6 | 12 | 150 | 2900 | 11 | 57 | 3.5 | 191 |
50GDL12-25 | 7 | 12 | 175 | 2900 | 15 | 57 | 3.5 | 210 |
50GDL12-25 | 8 | 12 | 200 | 2900 | 15 | 57 | 3.5 | 229 |
model | series | flow | lift | speed | Motor power | efficiency | NPSH required | weight |
m3/h | M | r/min | kw | % | NPSH | KG | ||
50GDL18-15 | 2 | 18 | 30 | 2900 | 3 | 63 | 4 | 122 |
50GDL18-15 | 3 | 18 | 45 | 2900 | 4 | 63 | 4 | 142 |
50GDL18-15 | 4 | 18 | 60 | 2900 | 5.5 | 63 | 4 | 175 |
50GDL18-15 | 5 | 18 | 75 | 2900 | 7.5 | 63 | 4 | 189 |
50GDL18-15 | 6 | 18 | 90 | 2900 | 7.5 | 63 | 4 | 198 |
50GDL18-15 | 7 | 18 | 105 | 2900 | 11 | 63 | 4 | 252 |
50GDL18-15 | 8 | 18 | 120 | 2900 | 11 | 63 | 4 | 261 |
50GDL18-15 | 9 | 18 | 135 | 2900 | 15 | 63 | 4 | 280 |
50GDL18-15 | 10 | 18 | 150 | 2900 | 15 | 63 | 4 | 289 |
model | series | flow | lift | speed | Motor power | efficiency | NPSH required | weight |
m3/h | M | r/min | kw | % | NPSH | KG | ||
50GDL18-24 | 1 | 18 | 24 | 2900 | 3 | 63 | 4 | 122 |
50GDL18-24 | 2 | 18 | 48 | 2900 | 4 | 63 | 4 | 142 |
50GDL18-24 | 3 | 18 | 72 | 2900 | 7.5 | 63 | 4 | 175 |
50GDL18-24 | 4 | 18 | 96 | 2900 | 11 | 63 | 4 | 230 |
50GDL18-24 | 5 | 18 | 120 | 2900 | 11 | 63 | 4 | 247 |
50GDL18-24 | 6 | 18 | 144 | 2900 | 15 | 63 | 4 | 265 |
50GDL18-24 | 7 | 18 | 168 | 2900 | 18.5 | 63 | 4 | 274 |
50GDL18-24 | 8 | 18 | 192 | 2900 | 22 | 63 | 4 | 301 |
model | series | flow | lift | speed | Motor power | efficiency | NPSH required | weight |
m3/h | M | r/min | kw | % | NPSH | KG | ||
65GDL24-12 | 2 | 24 | 24 | 2900 | 3 | 63 | 4 | 122 |
65GDL24-12 | 3 | 24 | 36 | 2900 | 4 | 63 | 4 | 142 |
65GDL24-12 | 4 | 24 | 48 | 2900 | 5.5 | 63 | 4 | 175 |
65GDL24-12 | 5 | 24 | 60 | 2900 | 7.5 | 63 | 4 | 189 |
65GDL24-12 | 6 | 24 | 72 | 2900 | 7.5 | 63 | 4 | 252 |
65GDL24-12 | 7 | 24 | 84 | 2900 | 11 | 63 | 4 | 261 |
65GDL24-12 | 8 | 24 | 96 | 2900 | 11 | 63 | 4 | 280 |
65GDL24-12 | 9 | 24 | 108 | 2900 | 15 | 63 | 4 | 289 |
65GDL24-12 | 10 | 24 | 120 | 2900 | 15 | 63 | 4 | 298 |
65GDL24-12 | 11 | 24 | 132 | 2900 | 15 | 63 | 4 | 317 |
65GDL24-12 | 12 | 24 | 144 | 2900 | 18.5 | 63 | 4 | 346 |
model | series | flow | lift | speed | Motor power | efficiency | NPSH required | weight |
m3/h | M | r/min | kw | % | NPSH | KG | ||
65GDL24-24 | 1 | 24 | 24 | 2900 | 3 | 63 | 4 | 122 |
65GDL24-24 | 2 | 24 | 48 | 2900 | 5.5 | 63 | 4 | 175 |
65GDL24-24 | 3 | 24 | 72 | 2900 | 7.5 | 63 | 4 | 189 |
65GDL24-24 | 4 | 24 | 96 | 2900 | 11 | 63 | 4 | 262 |
65GDL24-24 | 5 | 24 | 120 | 2900 | 15 | 63 | 4 | 317 |
65GDL24-24 | 6 | 24 | 144 | 2900 | 18.5 | 63 | 4 | 346 |
model | series | flow | lift | speed | Motor power | efficiency | NPSH required | weight |
m3/h | M | r/min | kw | % | NPSH | KG | ||
80GDL36-12 | 2 | 36 | 24 | 2900 | 4 | 71 | 4.2 | 193 |
80GDL36-12 | 3 | 36 | 36 | 2900 | 5.5 | 71 | 4.2 | 227 |
80GDL36-12 | 4 | 36 | 48 | 2900 | 7.5 | 71 | 4.2 | 244 |
80GDL36-12 | 5 | 36 | 60 | 2900 | 11 | 71 | 4.2 | 292 |
80GDL36-12 | 6 | 36 | 72 | 2900 | 11 | 71 | 4.2 | 302 |
80GDL36-12 | 7 | 36 | 84 | 2900 | 15 | 71 | 4.2 | 322 |
80GDL36-12 | 8 | 36 | 96 | 2900 | 15 | 71 | 4.2 | 332 |
80GDL36-12 | 9 | 36 | 108 | 2900 | 18.5 | 71 | 4.2 | 365 |
80GDL36-12 | 10 | 36 | 120 | 2900 | 18.5 | 71 | 4.2 | 375 |
model | series | flow | lift | speed | Motor power | efficiency | NPSH required | weight |
m3/h | M | r/min | kw | % | NPSH | KG | ||
80GDL36-24 | 1 | 36 | 24 | 2900 | 4 | 71 | 4.2 | 193 |
80GDL36-24 | 2 | 36 | 48 | 2900 | 7.5 | 71 | 4.2 | 193 |
80GDL36-24 | 3 | 36 | 72 | 2900 | 11 | 71 | 4.2 | 227 |
80GDL36-24 | 4 | 36 | 96 | 2900 | 15 | 71 | 4.2 | 244 |
80GDL36-24 | 5 | 36 | 120 | 2900 | 18.5 | 71 | 4.2 | 292 |
model | series | flow | lift | speed | Motor power | efficiency | NPSH required | weight |
m3/h | M | r/min | kw | % | NPSH | KG | ||
80GDL54-14 | 2 | 54 | 28 | 2900 | 7.5 | 73 | 4 | 218 |
80GDL54-14 | 3 | 54 | 42 | 2900 | 11 | 73 | 4 | 267 |
80GDL54-14 | 4 | 54 | 56 | 2900 | 15 | 73 | 4 | 287 |
80GDL54-14 | 5 | 54 | 70 | 2900 | 18.5 | 73 | 4 | 320 |
80GDL54-14 | 6 | 54 | 84 | 2900 | 18.5 | 73 | 4 | 330 |
80GDL54-14 | 7 | 54 | 98 | 2900 | 22 | 73 | 4 | 373 |
80GDL54-14 | 8 | 54 | 112 | 2900 | 30 | 73 | 4 | 400 |
80GDL54-14 | 9 | 54 | 126 | 2900 | 30 | 73 | 4 | 421 |
80GDL54-14 | 10 | 54 | 140 | 2900 | 37 | 73 | 4 | 432 |
model | series | flow | lift | speed | Motor power | efficiency | NPSH required | weight |
m3/h | M | r/min | kw | % | NPSH | KG | ||
80GDL54-28 | 1 | 54 | 28 | 2900 | 7.5 | 73 | 4 | 218 |
80GDL54-28 | 2 | 54 | 56 | 2900 | 15 | 73 | 4 | 287 |
80GDL54-28 | 3 | 54 | 84 | 2900 | 18.5 | 73 | 4 | 320 |
80GDL54-28 | 4 | 54 | 112 | 2900 | 30 | 73 | 4 | 453 |
80GDL54-28 | 5 | 54 | 140 | 2900 | 37 | 73 | 4 | 493 |
model | series | flow | lift | speed | Motor power | efficiency | NPSH required | weight |
m3/h | M | r/min | kw | % | NPSH | KG | ||
100GDL72-14 | 2 | 72 | 28 | 2900 | 11 | 73 | 4.5 | 276 |
100GDL72-14 | 3 | 72 | 42 | 2900 | 15 | 73 | 4.5 | 298 |
100GDL72-14 | 4 | 72 | 56 | 2900 | 18.5 | 73 | 4.5 | 336 |
100GDL72-14 | 5 | 72 | 70 | 2900 | 22 | 73 | 4.5 | 381 |
100GDL72-14 | 6 | 72 | 84 | 2900 | 30 | 73 | 4.5 | 453 |
100GDL72-14 | 7 | 72 | 98 | 2900 | 30 | 73 | 4.5 | 466 |
100GDL72-14 | 8 | 72 | 112 | 2900 | 37 | 73 | 4.5 | 493 |
100GDL72-14 | 9 | 72 | 126 | 2900 | 37 | 73 | 4.5 | 582 |
100GDL72-14 | 10 | 72 | 140 | 2900 | 45 | 73 | 4.5 | 595 |
model | series | flow | lift | speed | Motor power | efficiency | NPSH required | weight |
m3/h | M | r/min | kw | % | NPSH | KG | ||
100GDL72-28 | 1 | 72 | 28 | 2900 | 11 | 73 | 4.5 | 276 |
100GDL72-28 | 2 | 72 | 56 | 2900 | 18.5 | 73 | 4.5 | 336 |
100GDL72-28 | 3 | 72 | 84 | 2900 | 30 | 73 | 4.5 | 453 |
100GDL72-28 | 4 | 72 | 112 | 2900 | 37 | 73 | 4.5 | 582 |
100GDL72-28 | 5 | 72 | 140 | 2900 | 45 | 73 | 4.5 | 595 |
model | series | flow | lift | speed | Motor power | efficiency | NPSH required | weight |
m3/h | M | r/min | kw | % | NPSH | KG | ||
100GDL100-30 | 1 | 100 | 30 | 2900 | 18.5 | 73 | 4.5 | 336 |
100GDL100-30 | 2 | 100 | 60 | 2900 | 30 | 73 | 4.5 | 453 |
100GDL100-30 | 3 | 100 | 90 | 2900 | 37 | 73 | 4.5 | 493 |
100GDL100-30 | 4 | 100 | 120 | 2900 | 55 | 73 | 4.5 | 640 |
100GDL100-30 | 5 | 100 | 150 | 2900 | 75 | 73 | 4.5 | 840 |
100GDL100-30 | 6 | 100 | 180 | 2900 | 75 | 73 | 4.5 | 855 |
100GDL100-30 | 7 | 100 | 210 | 2900 | 90 | 73 | 4.5 | 870 |
model | series | flow | lift | speed | Motor power | efficiency | NPSH required | weight |
m3/h | M | r/min | kw | % | NPSH | KG | ||
125GDL100-20 | 2 | 108 | 40 | 2900 | 18.5 | 74 | 4.5 | 292 |
125GDL100-20 | 3 | 108 | 60 | 2900 | 30 | 74 | 4.5 | 430 |
125GDL100-20 | 4 | 108 | 80 | 2900 | 37 | 74 | 4.5 | 463 |
125GDL100-20 | 5 | 108 | 100 | 2900 | 45 | 74 | 4.5 | 555 |
125GDL100-20 | 6 | 108 | 120 | 2900 | 55 | 74 | 4.5 | 640 |
125GDL100-20 | 7 | 108 | 140 | 2900 | 75 | 74 | 4.5 | 840 |
125GDL100-20 | 8 | 108 | 160 | 2900 | 75 | 74 | 4.5 | 855 |
125GDL100-20 | 9 | 108 | 180 | 2900 | 90 | 74 | 4.5 | 870 |
125GDL100-20 | 10 | 108 | 200 | 2900 | 90 | 74 | 4.5 | 955 |
model | series | flow | lift | speed | Motor power | efficiency | NPSH required | weight |
m3/h | M | r/min | kw | % | NPSH | KG | ||
125GDL100-30 | 1 | 100 | 30 | 2900 | 18.5 | 74 | 4.5 | 336 |
125GDL100-30 | 2 | 100 | 60 | 2900 | 30 | 74 | 4.5 | 453 |
125GDL100-30 | 3 | 100 | 90 | 2900 | 37 | 74 | 4.5 | 493 |
125GDL100-30 | 4 | 100 | 120 | 2900 | 55 | 74 | 4.5 | 640 |
125GDL100-30 | 5 | 100 | 150 | 2900 | 75 | 74 | 4.5 | 840 |
125GDL100-30 | 6 | 100 | 180 | 2900 | 75 | 74 | 4.5 | 855 |
125GDL100-30 | 7 | 100 | 210 | 2900 | 90 | 74 | 4.5 | 870 |
model | series | flow | lift | speed | Motor power | efficiency | NPSH required | weight |
m3/h | M | r/min | kw | % | NPSH | KG | ||
150GDL160-20 | 2 | 160 | 40 | 2900 | 30 | 78 | 4.5 | 422 |
150GDL160-20 | 3 | 160 | 60 | 2900 | 37 | 78 | 4.5 | 452 |
150GDL160-20 | 4 | 160 | 80 | 2900 | 55 | 78 | 4.5 | 613 |
150GDL160-20 | 5 | 160 | 100 | 2900 | 75 | 78 | 4.5 | 820 |
150GDL160-20 | 6 | 160 | 120 | 2900 | 75 | 78 | 4.5 | 836 |
150GDL160-20 | 7 | 160 | 140 | 2900 | 90 | 78 | 4.5 | 922 |
model | series | flow | lift | speed | Motor power | efficiency | NPSH required | weight |
m3/h | M | r/min | kw | % | NPSH | KG | ||
150GDL160-30 | 1 | 160 | 30 | 2900 | 30 | 78 | 4.5 | 422 |
150GDL160-30 | 2 | 160 | 60 | 2900 | 37 | 78 | 4.5 | 452 |
150GDL160-30 | 3 | 160 | 90 | 2900 | 55 | 78 | 4.5 | 613 |
150GDL160-30 | 4 | 160 | 120 | 2900 | 75 | 78 | 4.5 | 820 |
150GDL160-30 | 5 | 160 | 150 | 2900 | 90 | 78 | 4.5 | 922 |
150GDL160-30 | 6 | 160 | 180 | 2900 | 110 | 78 | 4.5 | 1210 |
150GDL160-30 | 7 | 160 | 210 | 2900 | 132 | 78 | 4.5 | 1360 |
Water supply: filtration and transportation in water plant, water supply in different areas, pressurization in main pipes and pressurization in high-rise buildings.
Industrial pressurization: process water system, cleaning system, high pressure flushing system, fire protection system.
Industrial liquid transportation: cooling and air conditioning system, boiler feed water and condensation system, machine tools, acid and alkaline medium transportation.
Water treatment: ultrafiltration system, reverse osmosis system, distillation system, separator and water treatment system of swimming pool.
Irrigation: farmland irrigation, sprinkler irrigation, drip irrigation.
