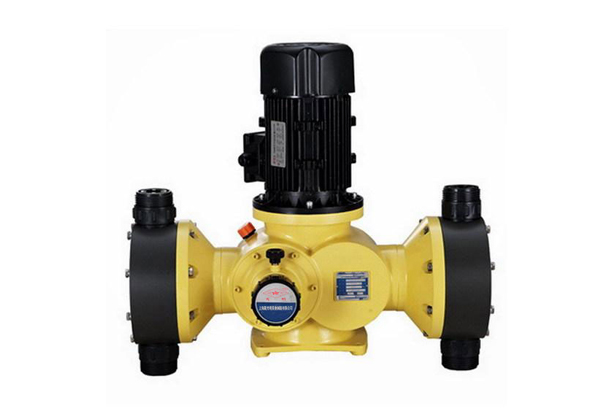

Overview of gb-s series precision metering pump
Measuring range: 0-3600l / h (1800l / h for larger single head)
Pressure range: 0-0.4mpa
Driving mode: motor driven
Control mode: manual and automatic control (can receive 4-20mA signal to adjust the flow)
1. Cast aluminum shell, high heat dissipation performance, light overall weight, suitable for all kinds of acid and alkali solution, non-toxic and tasteless.
2. Double cam mechanism, superior performance ratio, double head dosing.
3. Contact medium pump head is made of PVC, PTFE and stainless steel.
4. It is widely used in water treatment industry with low pressure requirements due to its high cost performance.
5. When the pump is running or stopped, the flow can also be adjusted at will, and the output can be quantified.
6. The diaphragm is pressed by multi-layer composite structure. The first layer is super tough Teflon acid resistant film, the second layer is EPDM elastic rubber, the third layer is 3mm thick SUS304 supporting iron core, the fourth layer is reinforced by reinforced nylon fiber, and the fifth layer is completely wrapped with EPDM elastic rubber, which can effectively improve the service life of the diaphragm.
Material of pump head | Working conditions |
Metering pump head: PVC, SUS304, SUS316, PTFE | Ambient temperature: - 15 ℃ - normal temperature |
Metering valve: PVC, SUS304, SUS316, polytetrafluoroethylene | Motor: two phase, three-phase standard motor or explosion-proof motor |
Valve ball: silica, SUS304, SUS316, ceramic | Power: 0.75KW 1.1KW 1.5kw |
Seal: PTFE, PVC | Protection grade: IP54 |
model | flow (L/H) | pressure (Mpa) | Impact times (min-1) | Motor power (kw) | In and out diameter (mm) | weight (KG) |
GB-S 1200/0.5 | 1200 | 0.5 | 96 | 1.5 | DN25 | 70 |
GB-S 1500/0.5 | 1500 | 0.5 | 96 | 1.5 | DN25 | 70 |
GB-S 2000/0.4 | 2000 | 0.4 | 144 | 1.5 | DN25 | 70 |
GB-S 2500/0.3 | 2500 | 0.3 | 144 | 1.5 | DN40 | 75 |
GB-S 320Q/0.3 | 3200 | 0.3 | 144 | 1.5 | DN40 | 75 |
Main application scope and advantages of gb-s series precision metering pump
Cast aluminum shell, high heat dissipation performance, light overall weight, suitable for all kinds of acid and alkali solution, non-toxic and tasteless.
It adopts cam mechanism. It has no leakage on the whole and can be placed on the medicine tank or pipeline.
Contact medium pump head is made of PVC, PTFE and stainless steel.
It is widely used in water treatment industry with low pressure requirements due to its high cost performance.
When the diaphragm corrosion-resistant metering pump is running or stopped, the flow can be adjusted arbitrarily and the output can be quantified.
The diaphragm is made of multi-layer composite structure. The first layer is super tough Teflon acid resistant film, the second layer is EPDM elastic rubber, the third layer is 3.mm thick SUS304 to support the iron core, the fourth layer is reinforced with reinforced nylon fiber, and the fifth layer is completely wrapped with EPDM elastic rubber, which can effectively improve the service life of the diaphragm.
